The excavator, a ubiquitous sight on construction sites, mining operations, and demolition projects, is a heavy equipment marvel of engineering. Its ability to dig, lift, and move vast quantities of earth, rock, and debris makes it an indispensable tool for shaping our world. While seemingly simple in concept, the excavator's functionality stems from a complex interplay of hydraulic systems, mechanical linkages, and sophisticated control mechanisms. This article delves into the intricacies of what an excavator is, exploring its components, operation, variations, and technological advancements.
Fundamental Components and Operation:
At its core, an excavator consists of several key components:
Undercarriage: This forms the base of the machine, providing mobility and stability. It typically comprises tracks or wheels. Tracked excavators offer superior traction and stability on uneven terrain, while wheeled excavators provide greater speed and maneuverability on paved surfaces. The undercarriage also houses the drive system, enabling the excavator to move.
Turret (or Superstructure): This rotating platform sits atop the undercarriage and houses the engine, hydraulic pumps, operator cab, and boom assembly. The turret's ability to rotate 360 degrees allows for versatile operation and efficient material handling
Arm (or Dipper Stick): Connected to the boom, the arm provides the in-and-out digging motion. Its length and design influence the digging depth and reach of the excavator.
Bucket: Attached to the end of the arm, the bucket is the primary digging tool. It comes in various shapes and sizes to suit different applications.
Hydraulic System: This is the heart of the excavator, providing the power to move all the components. Hydraulic pumps, driven by the engine, pressurize hydraulic fluid, which is then directed to hydraulic cylinders. These cylinders extend and retract, actuating the boom, arm, bucket, and rotation of the turret.
Engine: Typically a diesel engine, the engine provides the power to drive the hydraulic pumps and the undercarriage.
Operator Cab: This enclosed space provides the operator with a comfortable and safe working environment. It houses the controls, instrumentation, and often climate control systems.
The Hydraulic System in Detail:
The excavator's hydraulic system is a marvel of precision engineering. Key components include:
Hydraulic Pumps: These convert mechanical energy from the engine into hydraulic energy. Variable displacement pumps are commonly used, allowing for precise control of flow and pressure.
Hydraulic Valves: These control the direction and flow of hydraulic fluid to the cylinders. Spool valves are commonly used, allowing for precise control of the movement of the boom, arm, and bucket.
Hydraulic Cylinders: These convert hydraulic energy into mechanical energy, providing the linear force required to move the boom, arm, and bucket. They are designed to withstand high pressures and provide precise control.
Hydraulic Fluid: A specialized fluid that transmits power throughout the system. It must have specific properties, such as viscosity, lubricity, and thermal stability, to ensure proper operation.
Hydraulic Hoses and Piping: These carry the hydraulic fluid throughout the system. They must be designed to withstand high pressures and vibrations.
Operational Movements and Control:
The operator controls the excavator using a combination of levers, pedals, and joysticks. These controls allow for precise manipulation of the boom, arm, bucket, and turret rotation.
Boom Movement: The boom can be raised and lowered using hydraulic cylinders, allowing for vertical lifting and digging.
Arm Movement: The arm can be extended and retracted, providing the in-and-out digging motion.
Bucket Movement: The bucket can be curled and dumped, allowing for digging, loading, and material handling.
Turret Rotation: The turret can be rotated 360 degrees, allowing for efficient material handling and versatile operation.
Undercarriage Movement: The tracks or wheels can be driven forward and backward, allowing the excavator to move around the worksite.
Variations of Excavators:
Excavators come in a wide range of sizes and configurations to suit different applications:

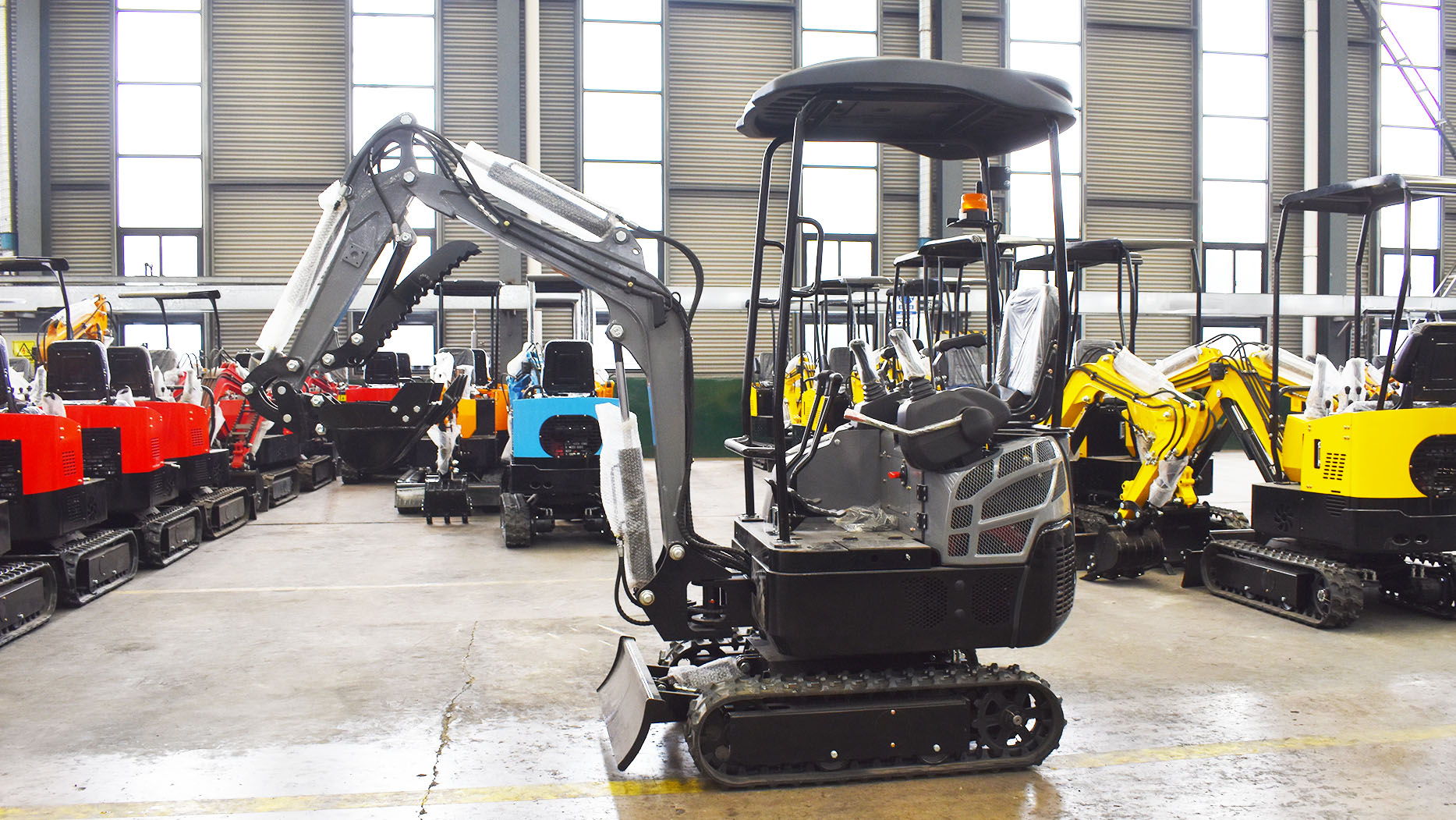

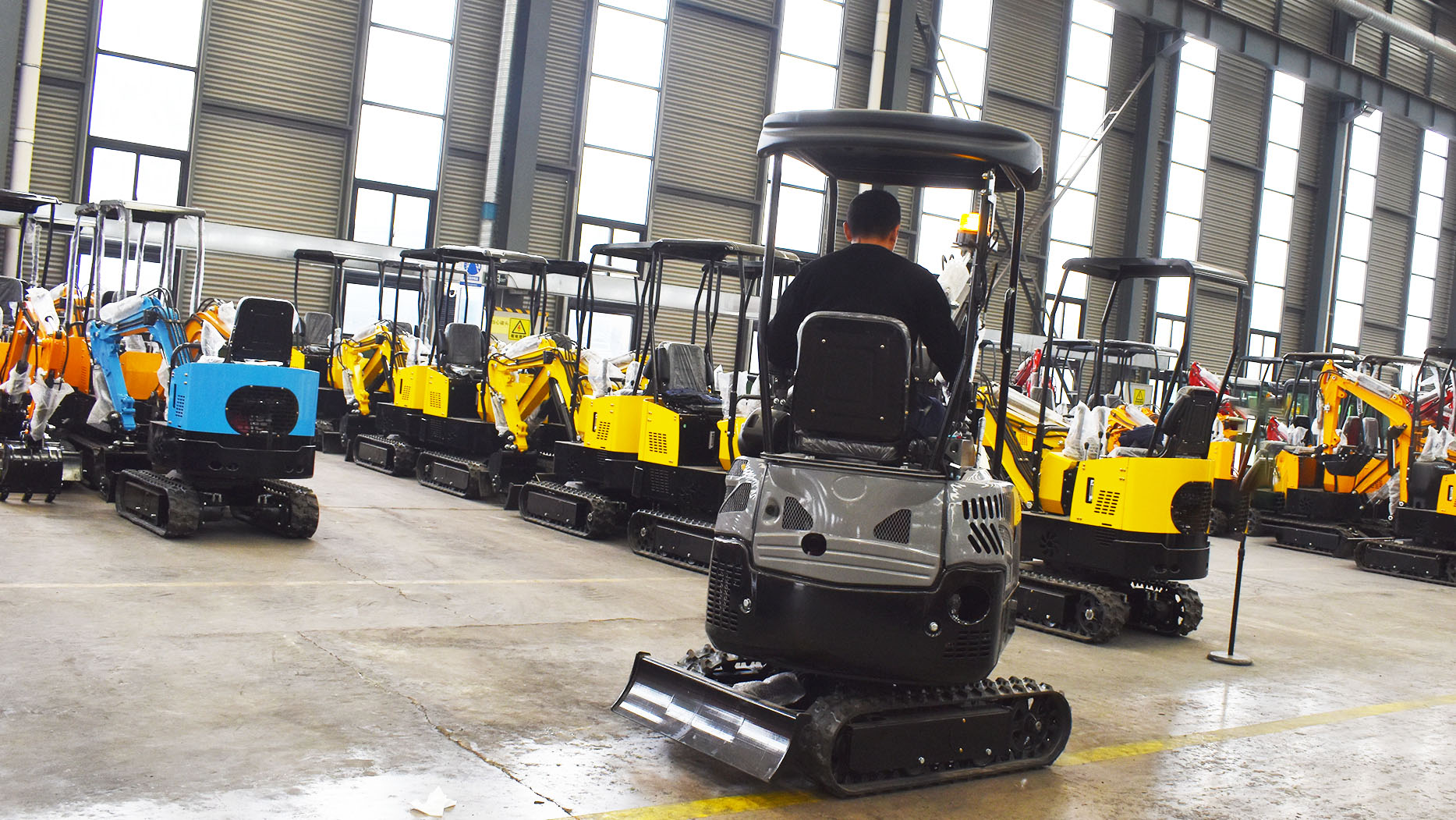

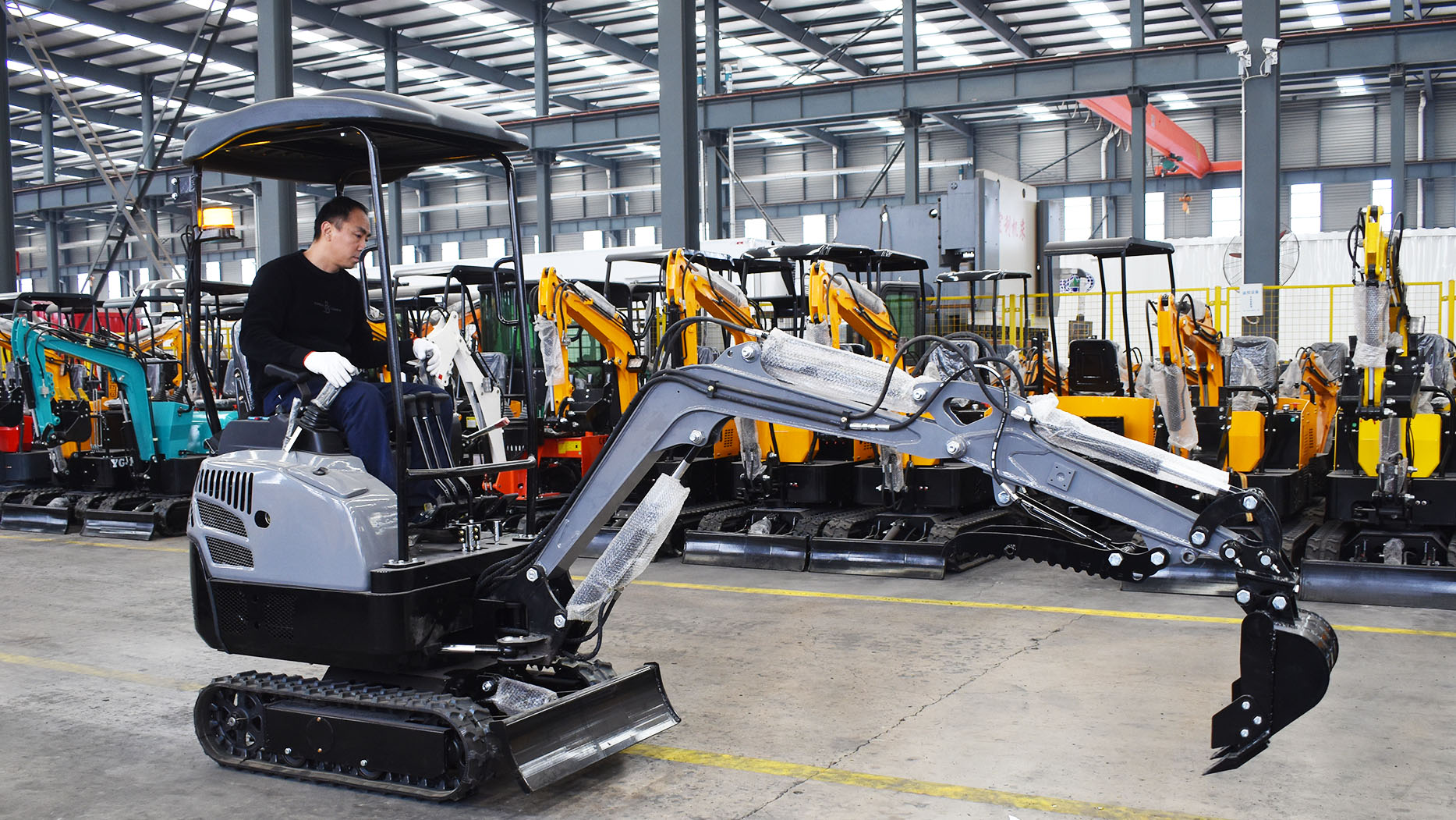

Mini Excavators: These compact machines are ideal for working in confined spaces, such as residential construction and landscaping.
Compact Excavators: Slightly larger than mini excavators, these machines offer a balance of power and maneuverability.
Standard Excavators: These are the most common type of excavator, used for a wide range of applications, including construction, mining, and demolition.
Large Excavators: These massive machines are used for heavy-duty applications, such as large-scale mining and quarrying.
Long Reach Excavators: These excavators feature extended booms and arms, allowing for digging and material handling at greater distances.
Dragline Excavators: These are very large excavators used in mining operations, where the bucket is dragged along the ground to remove overburden.
Shovel Excavators: These excavators are designed for digging and loading materials, such as rock and ore. They are often used in mining and quarrying.
Material Handlers: These excavators are equipped with specialized attachments, such as grapples and magnets, for handling materials such as scrap metal and logs.
Demolition Excavators: These excavators are equipped with specialized attachments, such as hydraulic breakers and shears, for demolishing buildings and structures.
Technological Advancements:
Excavator technology is constantly evolving, with advancements in areas such as:
Telematics: This technology allows for remote monitoring of excavator performance, including fuel consumption, operating hours, and location.
GPS and Machine Control: This technology allows for precise digging and grading, improving efficiency and accuracy.
Hybrid and Electric Excavators: These machines offer reduced emissions and improved fuel efficiency.
Automation: Autonomous excavators are being developed, which can operate without human intervention.
Advanced Hydraulic Systems: Improved hydraulic systems offer greater efficiency, precision, and reliability.
Enhanced Operator Comfort and Safety: Modern excavators are equipped with comfortable cabs, ergonomic controls, and advanced safety features.
Attachment Versatility: Quick coupler systems allow for rapid changes of attachments, increasing excavator versatility.
Applications:
Excavators are used in a wide range of applications, including:
Construction: Digging foundations, trenches, and utility lines.
Mining: Removing overburden, extracting ore, and loading trucks.
Demolition: Demolishing buildings and structures.
Road Construction: Grading and excavating for road construction and maintenance.
Landscaping: Digging and moving earth for landscaping projects.
Forestry: Harvesting timber and clearing land.
Dredging: Removing sediment from waterways.
Disaster Relief: Clearing debris and assisting in rescue operations.
Conclusion:
The excavator is a versatile and powerful machine that plays a vital role in shaping our world. Its complex hydraulic system, robust mechanical design, and sophisticated control mechanisms allow it to perform a wide range of tasks with precision and efficiency. As technology continues to advance, excavators will become even more capable and efficient, further enhancing their role in construction, mining, and other industries. The ongoing push for more efficient and environmentally friendly machinery is also pushing the development of hybrid and electric excavators, ensuring this machine will continue to evolve.
