MY20-3 mini Excavator

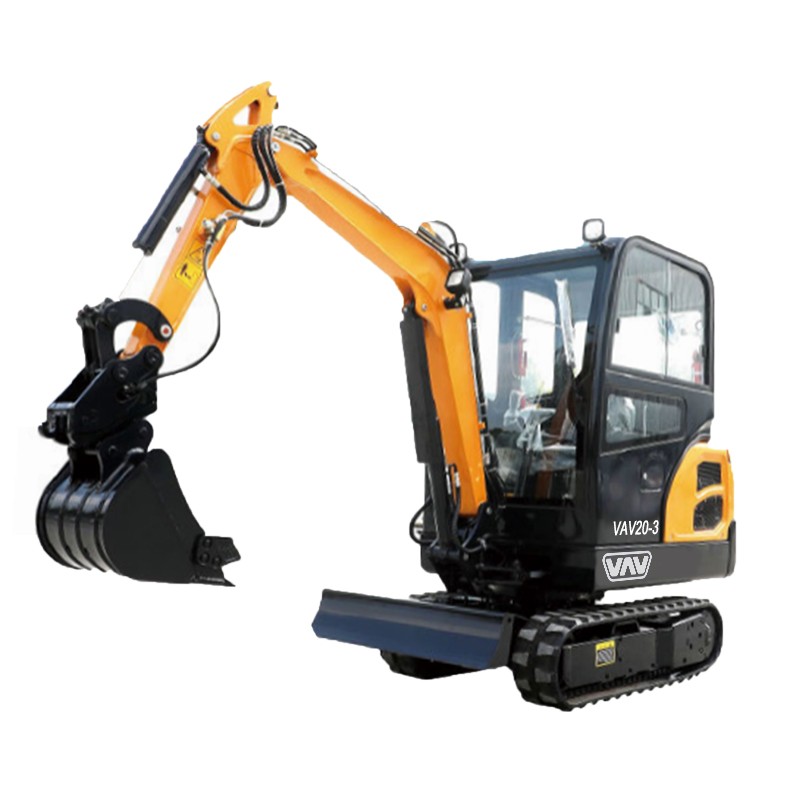

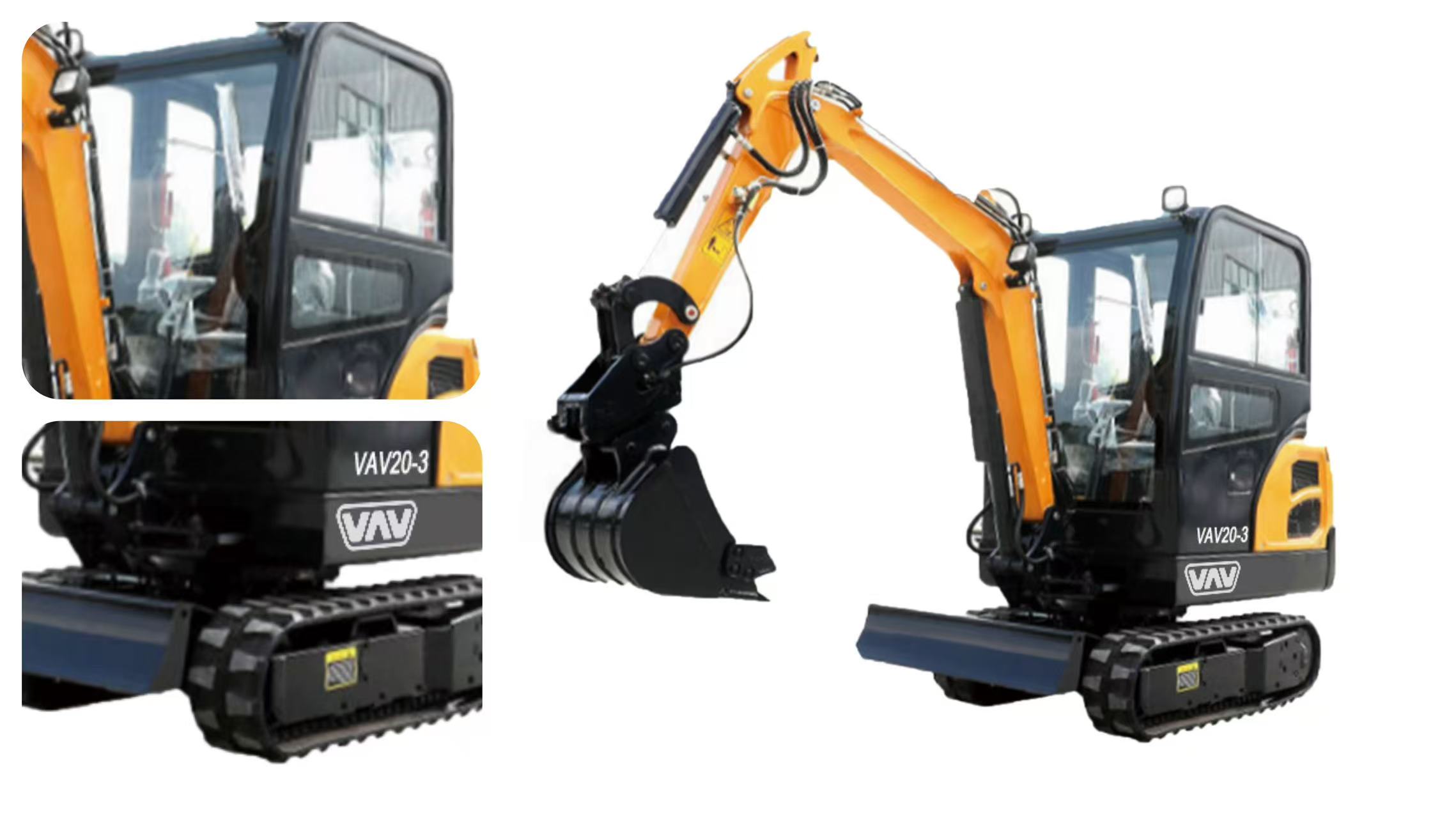

MY20-3 Mini Excavator: Compact Power for Versatile Performance
The MY20-3 Mini Excavator is a robust and highly efficient compact machine designed for a wide range of applications in tight spaces and challenging environments. Engineered for durability and ease of operation, the MY20-3 delivers exceptional performance and reliability, making it an ideal choice for contractors, landscapers, and utility workers.
Key Features:
Compact Design: The MY20-3's narrow profile and zero-tail swing design allow for easy maneuverability in confined areas, making it perfect for urban construction, residential projects, and indoor demolition.
Powerful Engine: Equipped with a high-performance, fuel-efficient engine, the MY20-3 delivers ample power for digging, lifting, and grading tasks.
Advanced Hydraulic System: The smooth and responsive hydraulic system provides precise control and efficient operation, maximizing productivity and minimizing operator fatigue.
Durable Construction: Built with heavy-duty components and a reinforced frame, the MY20-3 is designed to withstand the rigors of demanding job sites.
Operator Comfort: The comfortable and ergonomic operator station features intuitive controls, excellent visibility, and adjustable seating, ensuring operator comfort and productivity throughout the workday.
Technical Specifications
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Min.Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| Emission Standard | Euro5/ EPA |
| Engine Model | KUBOTA |
| Power/Rotation speed | 14.1kw(20HP)2000rpm |
| Optional Engine | china laidong 22.1kw |
| Standard bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Machine weight | 2000kg |
| Arm length | 1000mm |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2290mm |
| Max. Digging depth | 2450mm |
| Max. Vertical digging depth | 2160mm |
| Max. Digging radius | 4370mm |
| Min .swing radius | 2020mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 310mm |
Operator Comfort: The comfortable and ergonomic operator station features intuitive controls, excellent visibility, and adjustable seating, ensuring operator comfort and productivity throughout the workday.

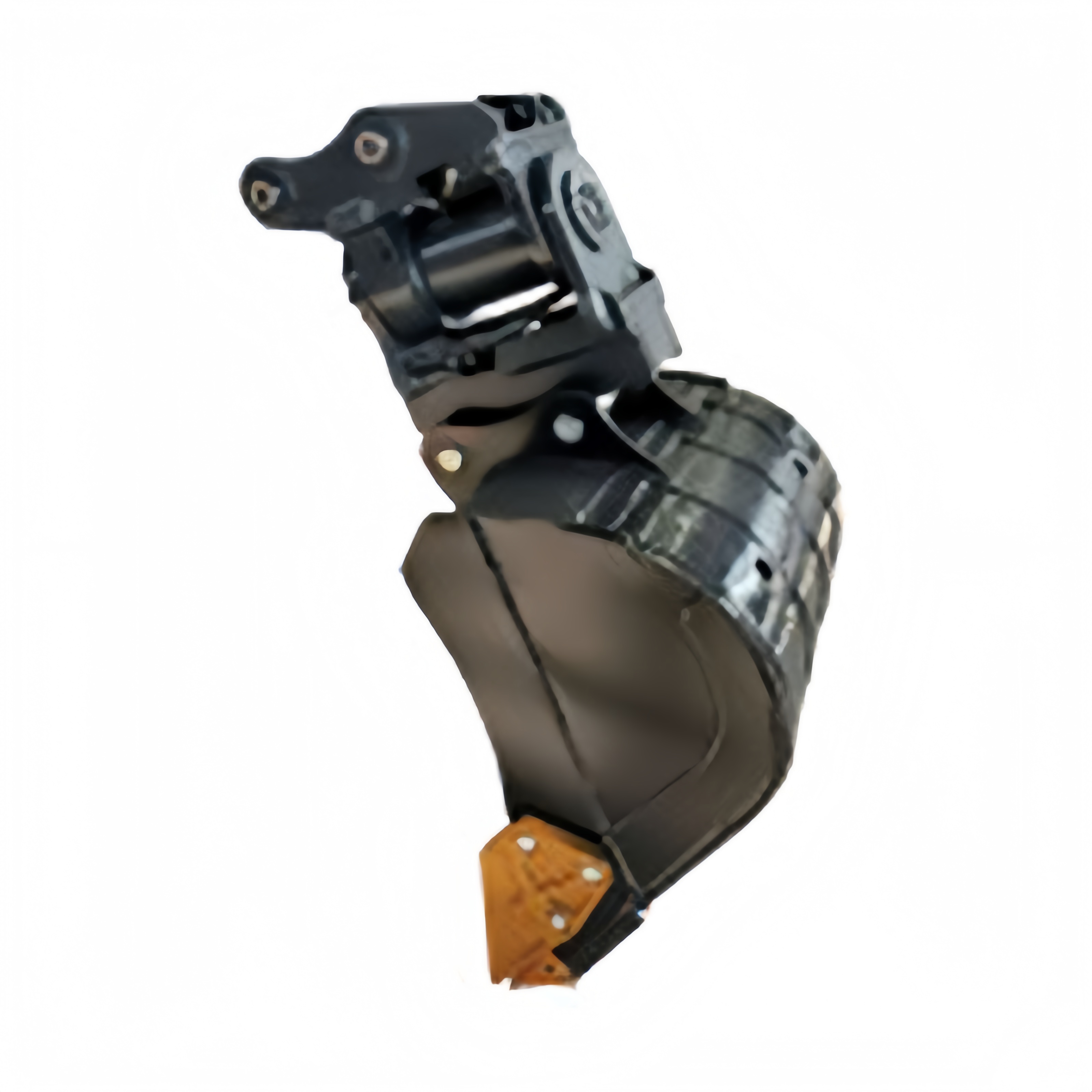

Versatile Attachments: Compatible with a wide range of attachments, including buckets, breakers, augers, and grapples, allowing for diverse applications.
Easy Maintenance: Designed for easy access to service points, simplifying routine maintenance and minimizing downtime.
Zero-Tail Swing: The zero-tail swing design allows the machine to rotate within its tracks, making it ideal for working alongside walls and in tight spaces.
Rubber Tracks: Rubber tracks provide excellent traction and minimize damage to sensitive surfaces, making the MY20-3 suitable for various terrains.
Expandable Undercarriage (Optional): Some models can include an expandable undercarriage for added stability.
Applications
Benefits:
Applications

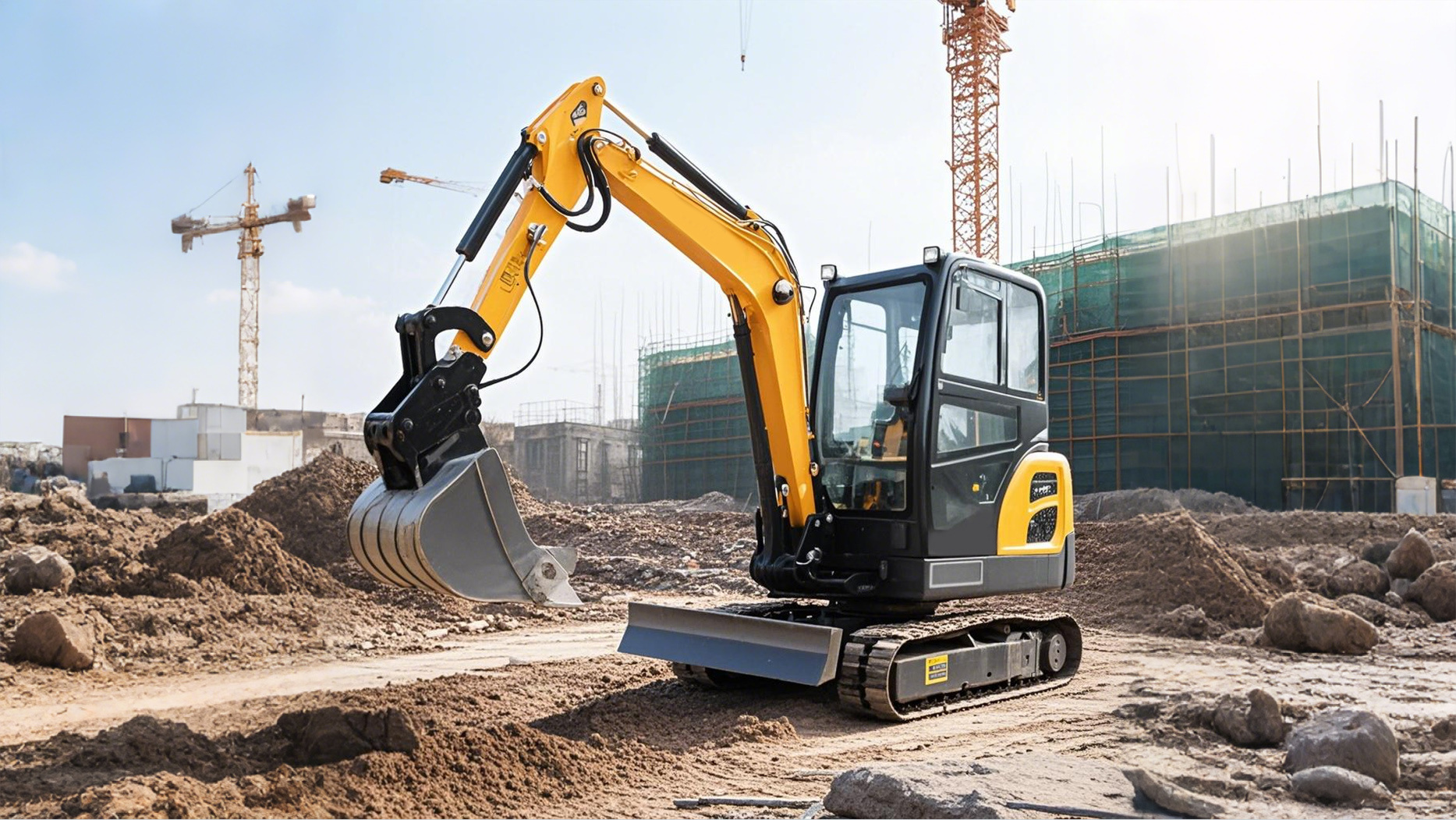

Construction: In the construction industry, the MY20-3 is used for tasks such as digging foundations, trenches for utilities, and backfilling. It can also be used for small-scale demolition work, site preparation, and excavation of basements and cellars.
Landscaping: For landscaping projects, the MY20-3 is ideal for tasks such as digging flower beds, installing irrigation systems, and moving soil and rocks. Its compact size and maneuverability make it a great choice for working in residential and commercial landscapes.
Agriculture: In the agricultural sector, the MY20-3 can be used for tasks such as digging irrigation ditches, clearing land, and moving agricultural materials. Its versatility of attachments also makes it suitable for tasks such as tree planting, pruning, and harvesting.
Mining and Quarrying: Although it is a mini excavator, the MY20-3 can be used in small-scale mining and quarrying operations for tasks such as digging small pits, removing overburden, and loading materials. Its compact size and powerful performance make it a valuable asset in these industries.
Snow Removal: In areas where snowfall is common, the MY20-3 can be equipped with a snowplow attachment to clear roads, driveways, and parking lots. Its maneuverability and power make it an efficient snow removal machine.
Why Choose the MY15 pro Mini Diesel Excavator?
In conclusion, the MY20-3 Mini Excavator with its independent station is a remarkable piece of equipment that offers a perfect blend of performance, versatility, comfort, and safety. Its compact design, powerful performance, and wide range of attachments make it an ideal choice for a variety of applications in different industries. Whether you are a professional contractor, a landscaper, or a DIY enthusiast, the MY20-3 Mini Excavator is sure to meet and exceed your expectations. With its exceptional features and reliability, it is a worthy investment that will provide years of trouble-free operation and help you achieve your project goals efficiently and effectively.
Call to Action:
Contact us today to learn more about the MY20-3 Mini Excavator and discover how it can enhance your productivity. Schedule a demo or request a quote. We are committed to providing you with the best solutions for your excavation needs.
