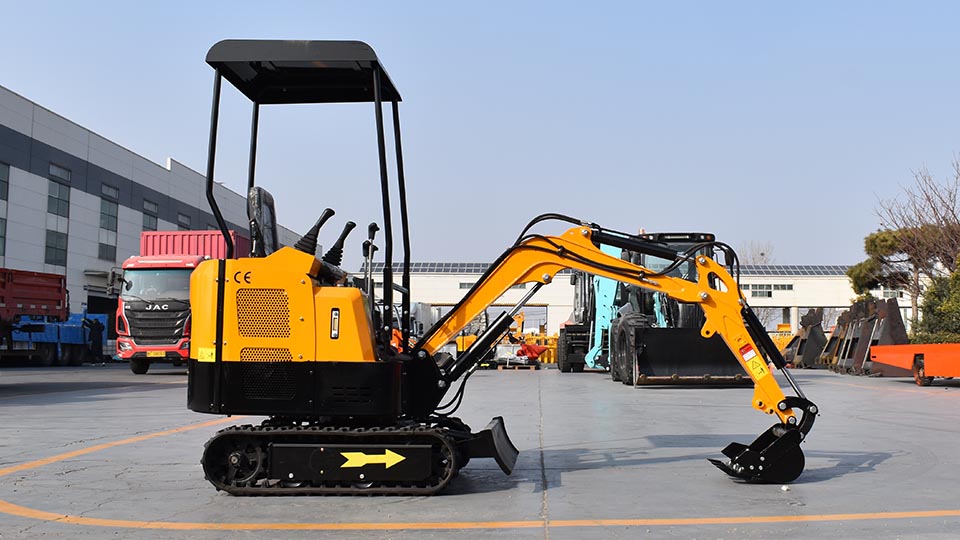

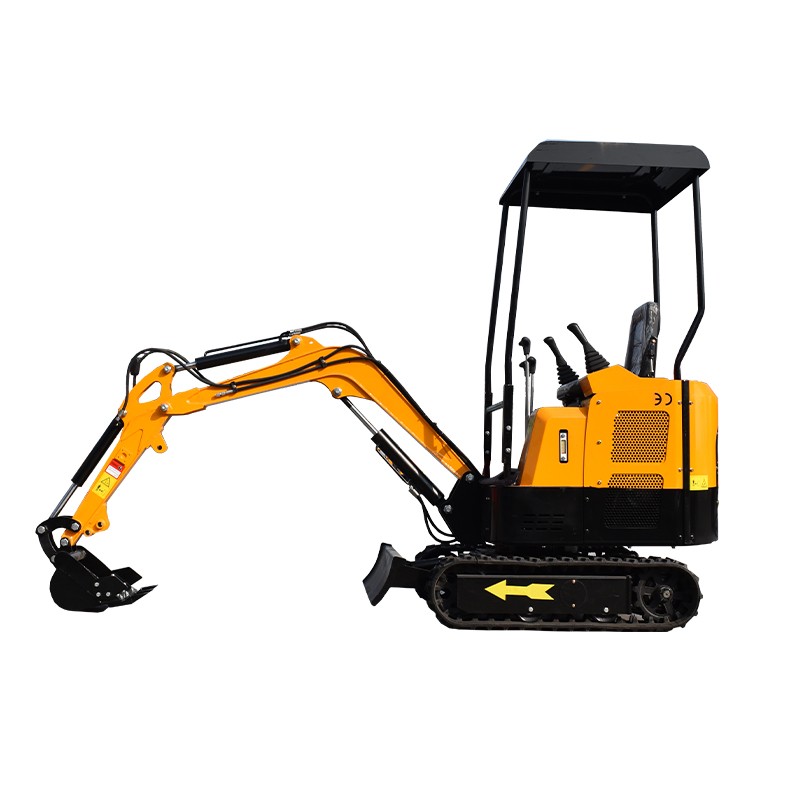

MY15 Mini Excavator: Your Ideal Compact Construction Companion

In the dynamic world of construction and landscaping, the MY15 Mini Excavator emerges as a versatile and efficient solution for a wide range of tasks. With its independent - station design, this mini excavator offers a unique set of advantages that cater to both professional contractors and DIY enthusiasts.

Compact Design and Maneuverability

The MY15 Mini Excavator is engineered with a highly compact structure, making it an ideal choice for working in tight spaces where larger excavators simply cannot fit. Its small footprint allows it to navigate through narrow alleys, backyards, and indoor construction sites with ease. The overall dimensions of the MY15 are carefully optimized, ensuring that it can access areas that are otherwise off - limits to traditional construction equipment.
The independent - station feature further enhances its maneuverability. The operator's cab is designed to provide a clear 360 - degree view of the work area, allowing for precise control and operation. The excavator's compact turning radius enables it to make sharp turns in confined spaces, reducing the need for excessive repositioning and increasing productivity. Whether it's digging trenches for utility installation, demolishing small structures, or landscaping in a residential yard, the MY15's maneuverability makes it a valuable asset.

Technical Specifications

Vehicle Weight	1500kg
Standard bucket capacity	0.04M3
Engine model	KOOP/B&S/KUBOTA
Rated power/speed	7kw-17.5kw
System pressure	9-16mpa
Rotary speed	11RMP
Maximum climbing angle	35°
Walking speed(high/low speed)	3.5Km/h
Fuel tank volume	18L
Wheel spacing	800mm
Total tracked	1220mm
Platform clearance	375mm
Chassis width	980mm
Track width	180mm
Maximum ground excavation radius	2900mm
Maximum excavation depth	1850mm
Maximum excavation height	2450mm
Minimum radius of rotation	1550mm

Powerful Performance

Despite its small size, the MY15 Mini Excavator packs a punch when it comes to performance. It is equipped with a high - quality engine that delivers sufficient power to handle a variety of tasks. The engine is designed to meet strict emissions standards, ensuring that it is environmentally friendly while still providing reliable performance.
The hydraulic system of the MY15 is carefully calibrated to provide smooth and precise operation. The excavator's arm, bucket, and other attachments can be controlled with great accuracy, allowing for efficient digging, loading, and material handling. The bucket capacity of the MY15 is optimized for its size, enabling it to handle a significant amount of material in each cycle. This, combined with its fast cycle times, ensures that the excavator can complete tasks quickly and efficiently.

Operator Comfort and Safety

Ease of Maintenance

Maintaining the MY15 Mini Excavator is relatively straightforward, thanks to its well - designed construction. The engine and other major components are easily accessible for routine maintenance tasks, such as oil changes, filter replacements, and inspections. The excavator also comes with a comprehensive maintenance manual that provides detailed instructions on how to perform these tasks.
The use of high - quality components in the MY15 ensures that it has a long service life and requires minimal downtime for repairs. This not only reduces the overall cost of ownership but also ensures that the excavator is available for use when needed.


Versatility of Attachments

One of the key advantages of the MY15 Mini Excavator is its versatility in terms of attachments. A wide range of attachments is available for the MY15, allowing it to be customized to suit different tasks. Some of the commonly used attachments include:

Digging Bucket: The standard digging bucket is ideal for general excavation work, such as digging trenches, foundations, and holes. It comes in different sizes to accommodate various digging depths and widths.
Auger: The auger attachment is used for drilling holes in the ground. It is commonly used for installing fence posts, tree planting, and other applications that require precise hole - drilling.
Hydraulic Hammer: The hydraulic hammer attachment is used for breaking up hard surfaces, such as concrete and rocks. It is a powerful tool that can significantly speed up the demolition process.
Grapple: The grapple attachment is used for handling and moving materials, such as logs, branches, and debris. It provides a secure grip on the materials, allowing for easy transportation and placement.

The ability to quickly and easily change attachments makes the MY15 Mini Excavator a highly versatile piece of equipment. This not only saves time but also reduces the need for multiple specialized machines, resulting in cost savings for the user.

Why Choose the MY15 Mini Diesel Excavator?

The MY15 Mini Excavator offers excellent cost - effectiveness compared to larger excavators. Its lower purchase price, combined with its relatively low operating and maintenance costs, makes it an attractive option for those on a budget. The excavator's high productivity and versatility also mean that it can be used for multiple tasks, reducing the need to invest in multiple specialized machines.
Moreover, the MY15's ability to work in tight spaces and access difficult - to - reach areas can save time and labor costs on projects. This makes it a cost - effective solution for both small - scale and large - scale construction and landscaping projects.

Call to Action:

Contact us today to learn more about the MY15 Mini Excavator and discover how it can enhance your productivity. Schedule a demo or request a quote. We are committed to providing you with the best solutions for your excavation needs.
